Hydraulic Nut Splitter

Product Description

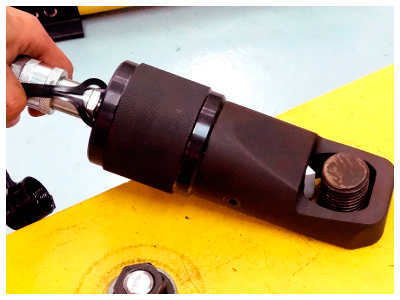

Ships sail at the sea around the world for years. The parts where are exposed to sea water would be rusty and degenerated and it is the main problem in ship construction. It can happen in any place in the ship such as tube and pipe system, flange screws or mechanic foundation bolts…etc. MIT-HNS (Hydraulic Nut Splitter) is designed for marine condition. There is no any risk from fire work, no any damage from heat effect or fire break out caused by high temperature. Hydraulic Nut Splitter is operated by hydraulic. The small tools solve the difficulty of work in narrow space. The remote control also solves the problem of taking risk to work in height area. Hydraulic provides huge power to destroy the object and it is made by unique alloy steel which is durable for use. Hydraulic Nut Splitter can remove the tube/pipe system, flanges and machine in fast and efficient way to make the ships are always on schedule. Hydraulic Nut Splitter gains high and positive evaluation by users most from Americaand Europe especially in the durability and full sealed hydraulic technology.





Features

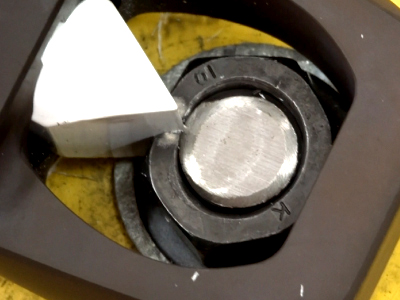

- Specially designed "tool steel" cutter blade penetrates the nut to the precise point where it cracks, stopping short of the bolt threads.

- Applications include servicing trucks, piping industry, tank cleanig, petrochemical, steel construction and mining.

- Heavy-duty chisels can be reground.

- Sing-acting, spring return cylinder.

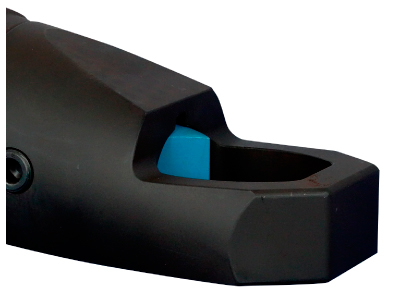

- Unique angled head allows flush access.

- Compact and ergonomic design, easy to use.





Specification

Model No.	Hex. Nut Range		Bolt Range		Capacity (ton)	Weight (kg)
	(in)	(mm)	(in)	(mm)
HNS-1319	0.50-0.75	10-19	0.31-0.50	M6-M12	5	1.1
HNS-1924	0.75-0.94	19-24	0.50-0.63	M12-M16	10	2.0
HNS-2432	0.94-1.13	24-32	0.63-0.88	M16-M22	15	3.4
HNS-3241	1.13-1.56	32-41	0.88-1.13	M22-M27	20	5.8
HNS-4150	1.56-2.00	41-50	1.13-1.38	M27-M33	35	11.7
HNS-5060	2.00-2.25	50-60	1.38-1.50	M33-M39	50	15.4
HNS-6075	2.38-2.88	60-75	1.50-1.88	M39-M48	90	38.9



Test
