6T FPD



Max Break Load:42~49 T

Length:50~185 cm

Temperature environment:-40°C~+140°C

Material:Polyester

Comply with:MSC. 1327 & 1392 & 1466

Certification:Lloyd's Register, SGS, TAF

Place of Origin:Taiwan



Product Description

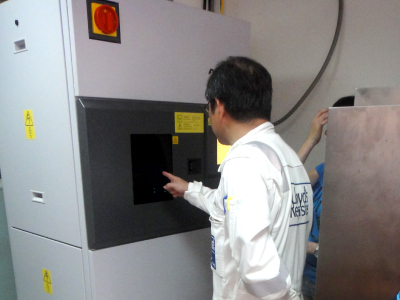

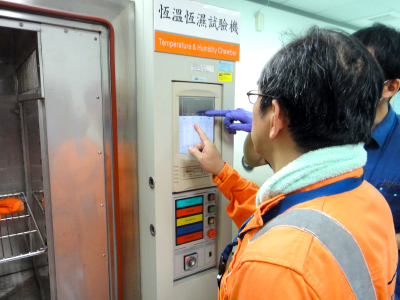

Extreme Temoerature Cyclic Test
Extreme Temoerature Cyclic Test
Weathering Accelerate Test
Weathering Accelerate Test

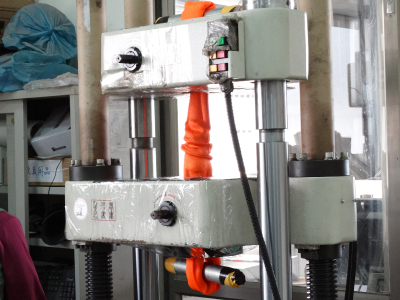

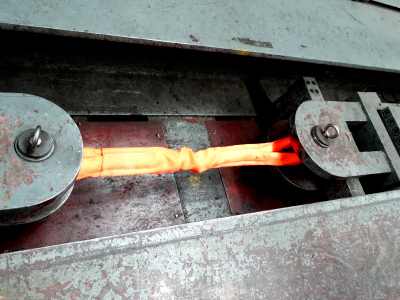

Break Load Test
Break Load Test
Break Load Test
Break Load Test



Lloyd’s Register approval

Every piece of FPD has been tested by the witness of LR surveyor before dispatch to our clients. There are total 17 pages certificates to convince all the users around the world.

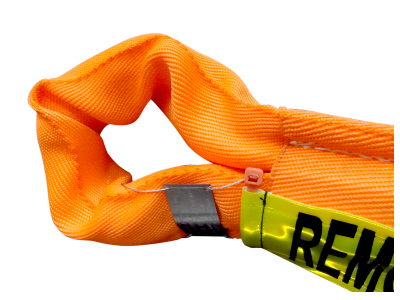

Special designed FPD protect coat

The design purpose of protect coat is to protect the FPDs, which is oil resistant, wear resistant and heat resistant (140℃), but with no loading function. Keep the fibers inside safe and prevent it from breaking and cutting. You can check the safe condition through the protect coat.

Comply with MSC1327

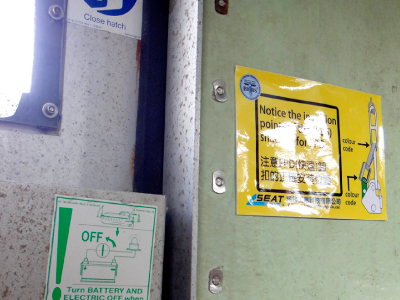

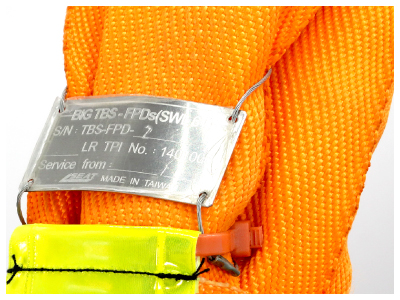

Tagged instruction for attachment point
Tagged instruction for attachment point

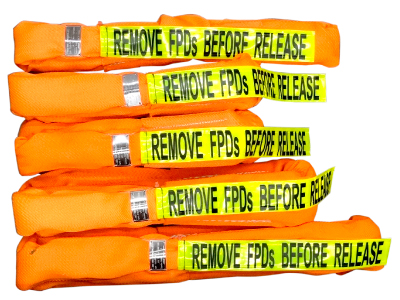

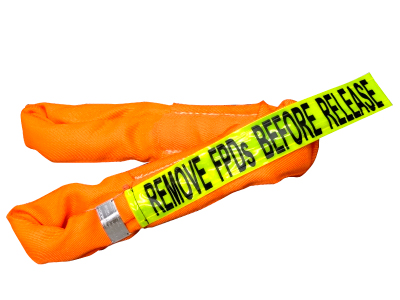

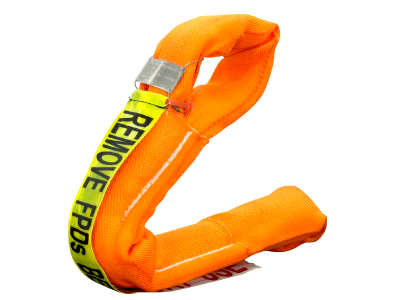

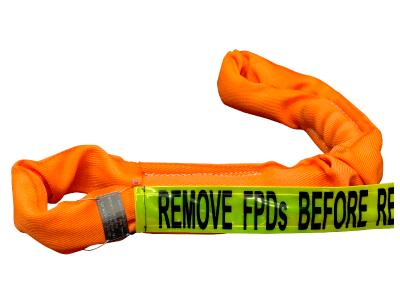

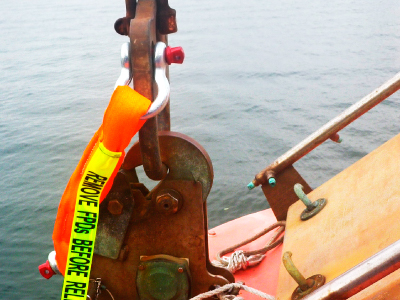

Warning strip for FPD
Warning strip for FPD

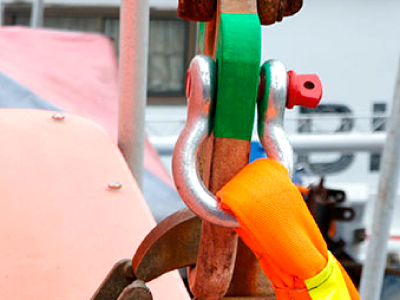

Fluorescent paint
Fluorescent paint

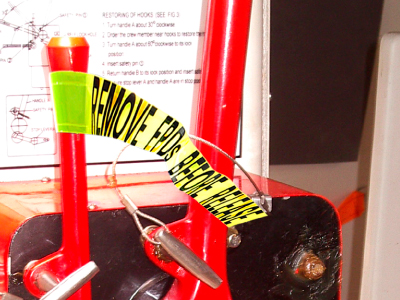

Warning strip for Release handle
Warning strip for Release handle



Fall Preventer Device (MSC.1/Circ.1327) is used to minimize the risk of injury or death by providing a secondary alternate load path in the event of failure of the release hooks. FPD is mandatory equipment for each lifeboat until the system is found compliant with LSA code, set out in MSC.1/Circ.1392.





Features

-Strong & soft

Stronger than the regulation MSC.1327 & 1466,but easy to operate & harmless for people

- Durable

Weathering resistance no degeneration in bad wreath & 1 year warranty

- Lloyds’s Register

Tests are witness by with most strict & confidence inspection procedure

- Full Kits

Design with instruction tag, high light painter, warning strip to remind people to use correctly



Specification

BIG TBS-FPDs fit for 6.0 tons lifeboat under 35 persons.

Length

Range

(cm)

Diameter

Break load

(kg)

FPD N.W.

(kg)

G.W.

(kg)

SWL x 2.2

(kg)

  0.5M

50~55

35Ø

42450

0.84

11.2

13200

  0.7M

70~75

42895

1.18

12.0

  0.75M

75~80

45034

1.18

12.0

  0.8M

80~85

45415

1.18

12.0

  1.0M

100~105

46590

1.5

12.8

  1.2M

120~125

49667

1.9

13.6

  1.8M

180~185

49667

2.5

16.2

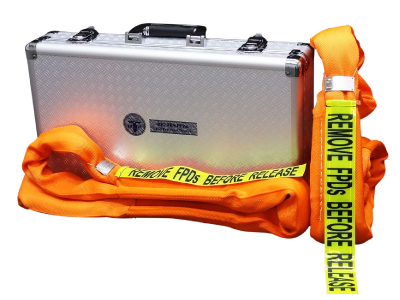

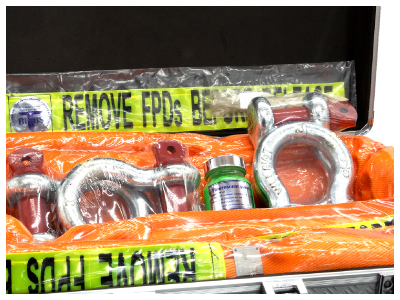

Kit List

2 Pcs

Synthetic fiber Fall Preventer Device sling

2 Pcs

FPDs warning strip

2 Pcs

Name tag with S/N & date for FPDs

4 Pcs

SWL 6.5 ton shackle

1 Pc

Notice strip for release handle

2 Pcs

Attachment point instruction tag

1 Pc

Green high-light painter and a brush

1 Pc

Aluminum tool case

1 Pc

S.E.A.T. certificate of quality

17 Pcs

Certificate

1 Pc

FPDs check list

1 Pc

BIG TBS-FPDs English manual

1 Pc

BIG TBS-FPDs DM



Test
